Basket Gabion
Hexagonal Gabion Gabion Cages Gabion Fence
products specification

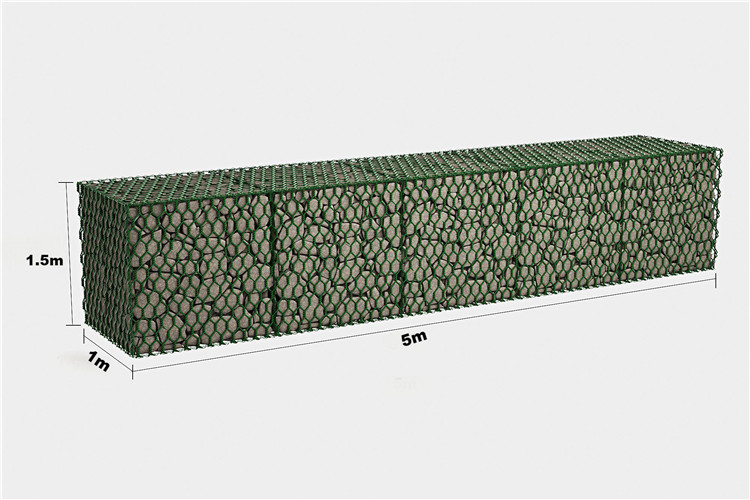

| Gabion Size(Length*Width*Height) | Wire Thickness | Mesh opening |
| 1*1*1m | 2.7mm selvage wire | 60*80mm,70*90mm |
| 2*1*1m | 2.2mm mesh wire | |
| 3*1*1m | 2.0mm tie wire | |
| 4*1*1m | 3.4mm selvage wire | 80*100mm,100*120mm |
| 4*2*1m | 2.7mm mesh wire | |
| 2.2mm tie wire | ||
| All sizes can customized according to your request. | ||
What can Gabions and River Mattresses be used for?
Gabions are a kind of wire mesh boxes, Gabions and geotextiles are normally used together to reduce water velocities and prevent soil erosion and to retain/contain soil particles. Flat Gabions are used mostly in the civil engineering industry, especially in the construction of roadway drainage structures.

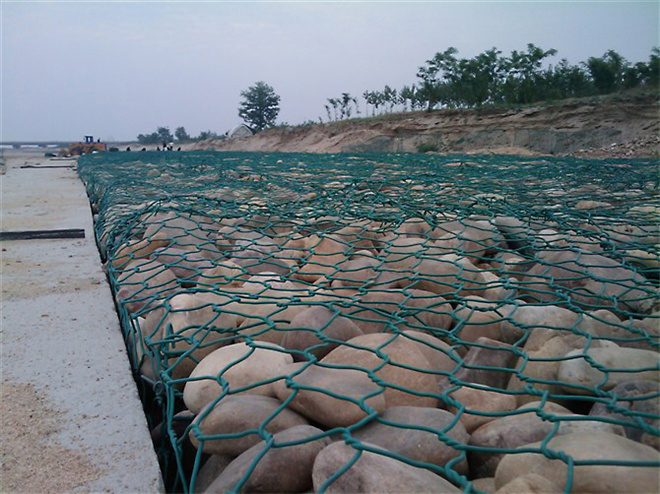

Gabion mattresses are larger in size are suited to covering larger areas on the river bed to prevent erosion. Which is absolutely a unique approach to both drainage solutions and environmentally friendly solutions.
Double Twisted Mesh Gabion Mattresses Advantage
• Flexibility
Mattress gabions are commonly made from heavy galvanized or PVC-coated wire for corrosion protection. We manufacture Gabions using high quality Galvanising with an additional options 0.5mm thickness PVC coated- for hexagonal type woven wire mesh gabion materials.
• Strength
Gabions high strength includes following:
Mesh wire breaking strength;
Mesh wire tensile strength;
Pull apart resistance strength
Chemical and UV weather resistance, corrosion resistance of the mesh.
• Durability
Rigid modular design that provide structural stability and durability, Our materials are quality assured, conforms to China’s national specification and are used in a very wide range of applications.

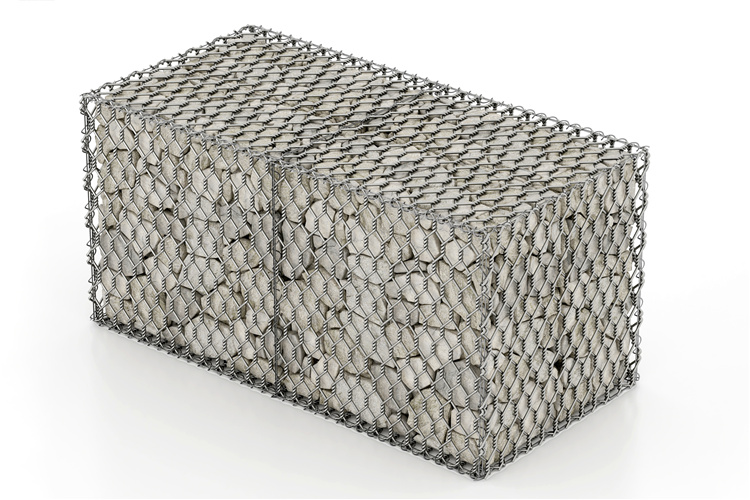

Gabion Box
Material: High quality low carbon steel wire
Q&A
What is the lifetime of Gabions?
The lifetime value of gabions is generally quite high, making them a cost-effective solution for many long-term applications. Typically, gabions can be used between 35 to 50 years, and sometimes even longer, depending on the environmental conditions and the materials' quality. Regular maintenance and inspections can help identify and address any issues, such as corrosion or structural weakness, thereby extending their service life.
Are Gabions difficult to install?
Gabions do not require any specialized equipment or skills for installation. This ease of assembly and flexibility in material sourcing make gabions a practical option for remote or difficult-to-access locations, making Gabions relatively easy to install.
Are Gabions easy to maintain?
Once installed, gabions do not require regular upkeep and are generally low-maintenance, but regular checking and minor repairs can be necessary to ensure their continued effectiveness and longevity.
