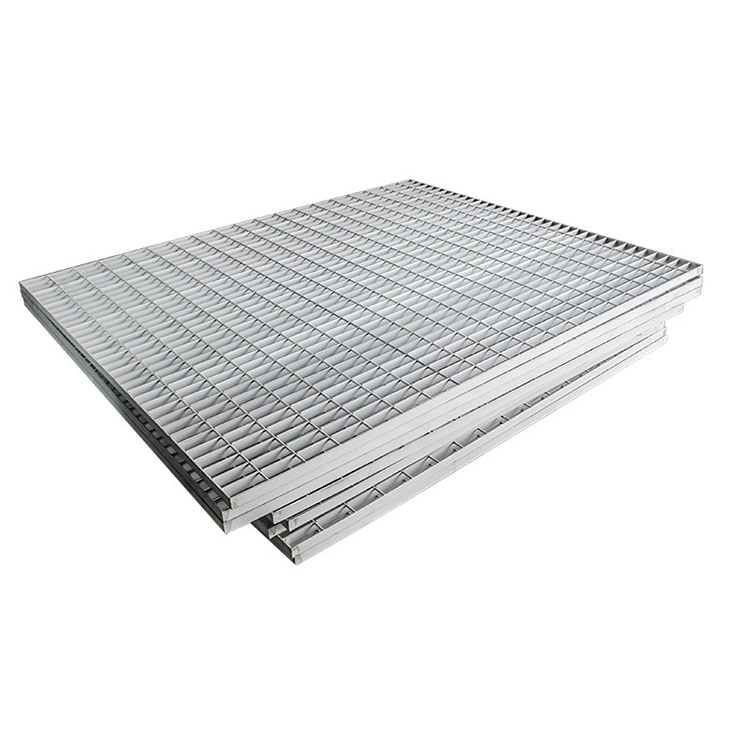

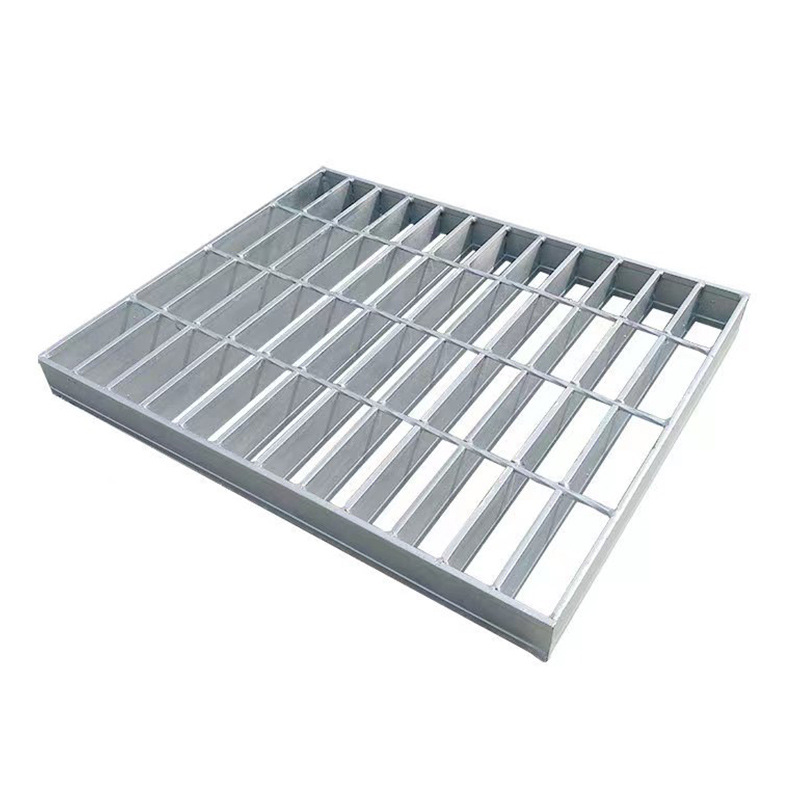

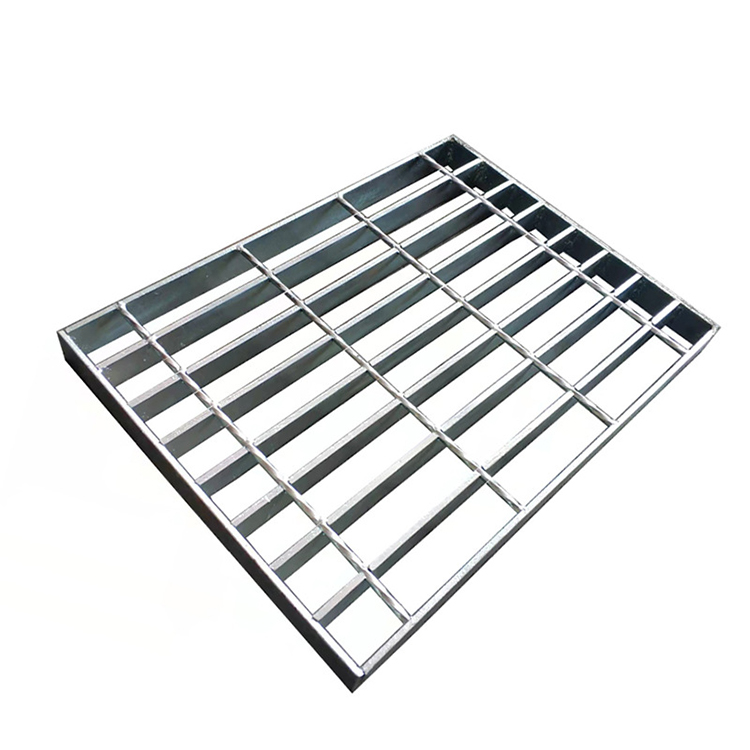

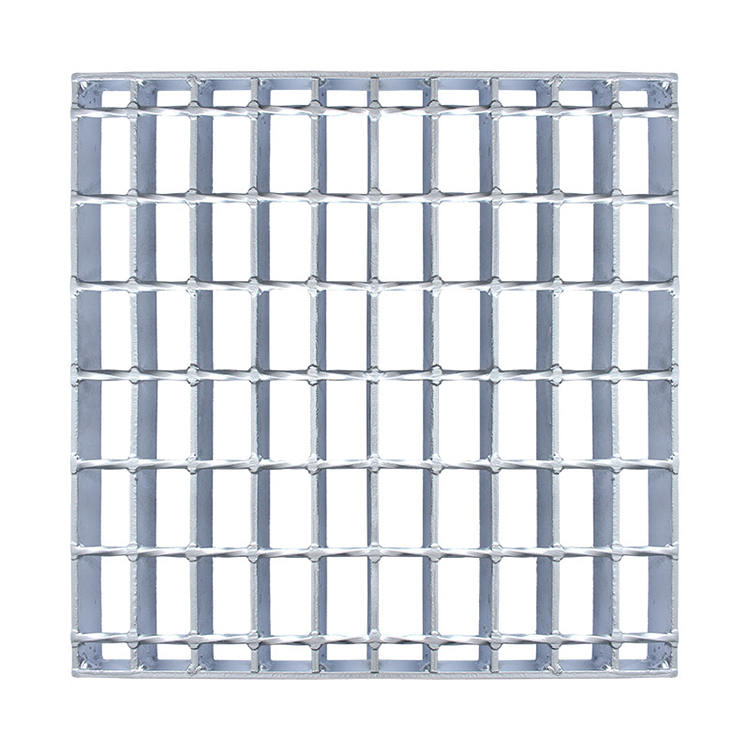

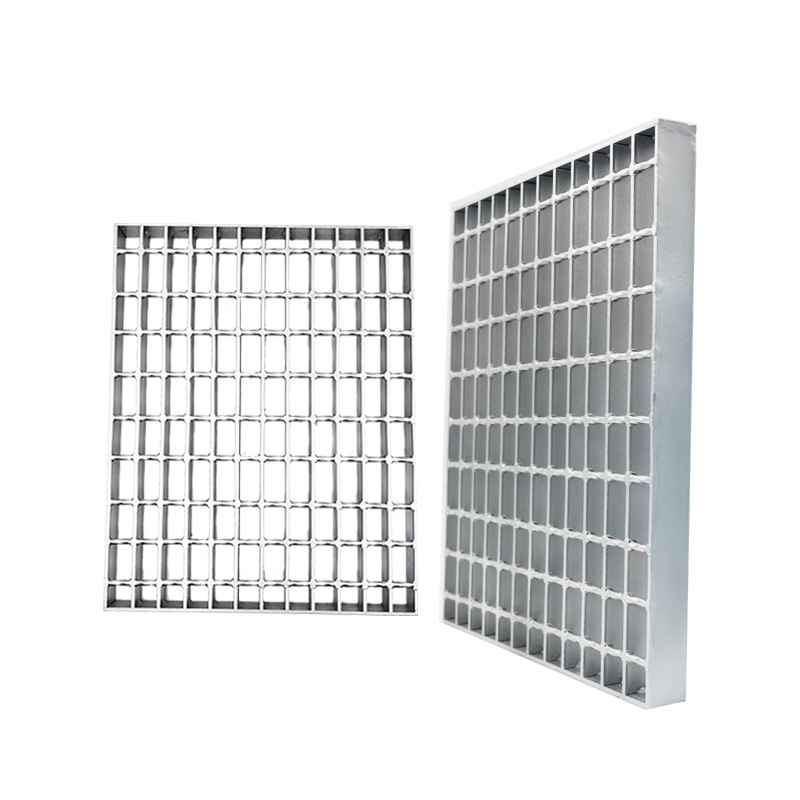

Hot Dip Galvanized Steel Grating Flat Walkway Platform Driveway Metal Steel Grate
products description
Steel grating is also known as the mesh grid, is generally made of mild steel, and the appearance of hot-dip galvanized can prevent oxidation. galvanised industrial gratings are sturdy grids of bearing bars and crossbars fabricated from galvanised mild steel.It can also be made of stainless steel. Steel grid plate with ventilation, lighting, heat dissipation, anti-slip, explosion-proof and other properties. There are more than 200 specification varieties (according to different use environment, the surface can be different protection treatment), which is widely used in various factories and engineering projects. The design of these gratings ensures maximum strength to weight ratio. These 15 x 30 galvanised gratings are suitable for flooring in industrial and domestic applications.

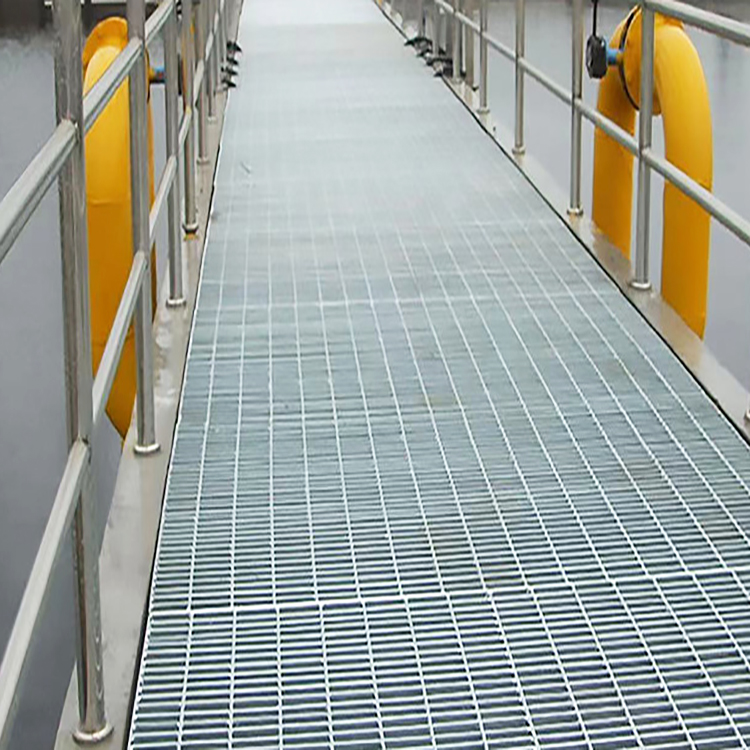

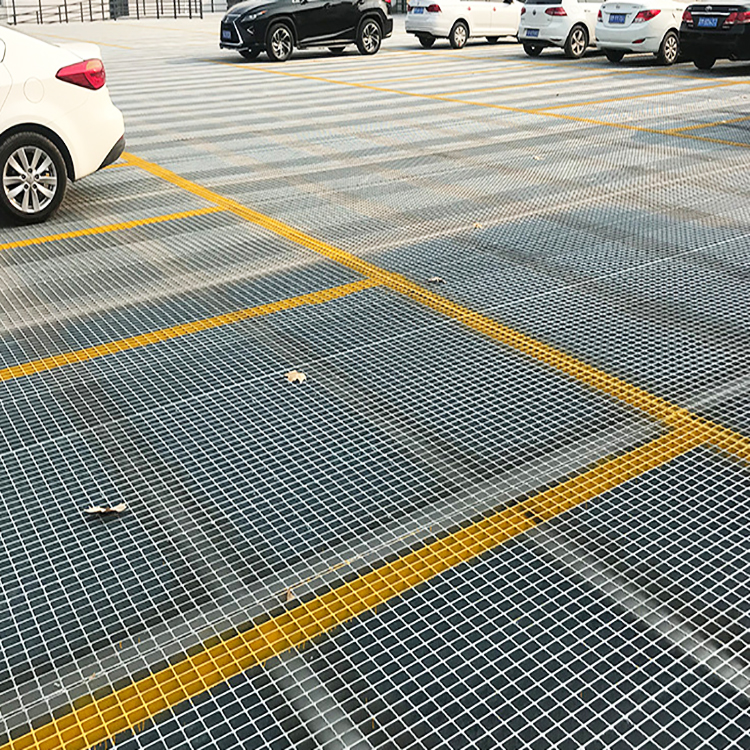

When used in industrial environments, this design can help to prevent slippages as detritus and liquids usually drop through the gaps in the walkway to the floor. Galvanised steel grating can also be used in domestic settings, and as solutions for certain vehicles.
products specification
| Steel Grating Specification | ||||
| Material Standard | ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,Mild steel & Low carbon steel, etc | |||
| Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; | |||
| (Width x Thickness) | I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc | |||
| US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc | ||||
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. | |||
| US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. | ||||
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc | |||
| Surface Treatment | Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement. | |||

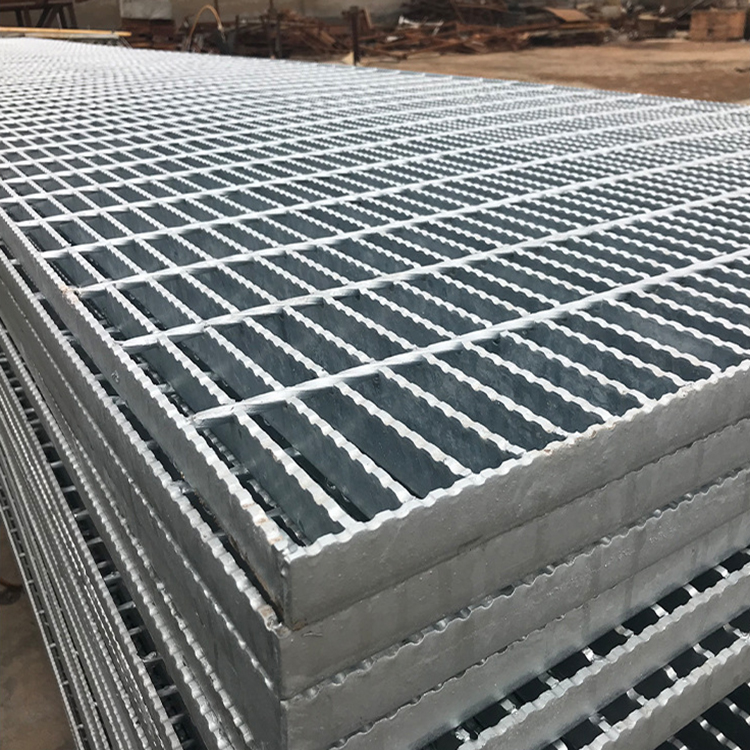

| Grating Style | Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar | |||
| Packing | (1) Bandage and Paperboard: Generally applies to neat steel plate; | |||
| (2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; | ||||
| (3) Steel Pallet: Traditional export packing. | ||||
Galvanised Steel Flooring Sizes
As leading galvanised walkway suppliers, we stock flooring in three standard sizes. Our smallest size is 1,000mm x 1,000mm with mid-range walkways at 2,000mm x 1,000mm and the largest size of 3,000mm x 1,000mm.
We also can provide floor grating clips that come in singular units. Please note we cannot provide our free cutting service with the galvanised mild steel walkway or corrugated sheets. These are only sold in the sizes listed above and on the website.
Lead time for delivery of galvanised products may be longer than our usual standard delivery time of 1-3 days.

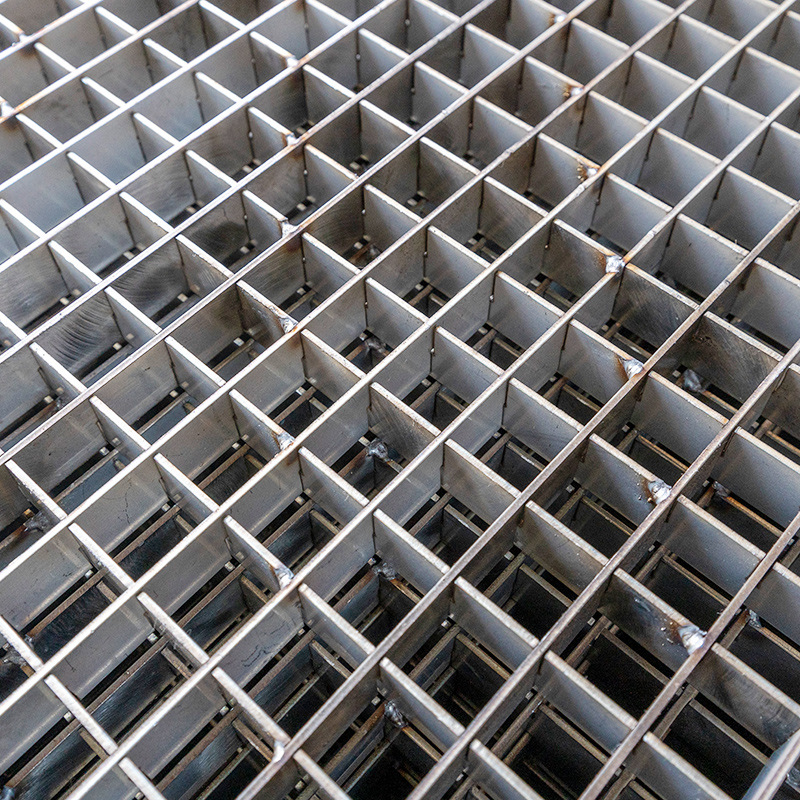

Weld mesh grating is a type of metal grating made from welding steel bars together at their intersections. The result is a strong and durable material with a rectangular grid pattern that is ideal for various applications, including flooring, fencing, and architectural purposes. Weld mesh grating is commonly used in industrial settings, such as factories, refineries, and warehouses, where it provides a secure and slip-resistant surface.
Weld mesh grating is also commonly used in construction, where it serves as reinforcement in concrete structures and as a support structure for steel beams. In addition, it is frequently used in outdoor applications, such as bridges, sidewalks, and retaining walls, due to its ability to withstand harsh weather conditions.
The advantages of mesh grating
One of the key benefits of weld mesh grating is its strength and durability. The welding process creates a strong bond between the bars, making it resistant to bending and breaking. This makes it ideal for applications that require a high degree of stability and support.
Another advantage is its versatility. It is available in a range of sizes and bar spacing, allowing it to be customised for specific applications. The bars can also be coated with various materials, such as paint or zinc, to enhance its resistance to corrosion and rust.
Weld mesh grating is also relatively easy to install, making it a popular choice for DIY projects. It can be cut to size and fitted into place, making it a cost-effective solution for a wide range of applications.
Overall, weld mesh grating is a versatile, strong, and durable material that is well-suited to a wide range of applications. Whether you are looking to reinforce concrete structures, create a slip-resistant surface, or provide support in a heavy-duty industrial setting, weld mesh grating is an excellent choice.
Grating for operating floor
Material: ASTM A36.
Mesh pitch: 33 × 33 mm.
Load bearing bar size: 40 × 5 mm.
Transverse bar size: dia. 5 mm (support bar).
Binding bar size: 40 × 5 mm.
Protection: all surfaces to be made free from rust and scale by chemical cleaning.
Painting: apply coat of suitable bituminous paint by dipping dry film 60 micron.
Grating size: 800 × 1000 × 40 mm, 1000 × 1000 × 40 mm, 1200 × 1000 × 40 mm, 1300 × 1000 × 40 mm.
